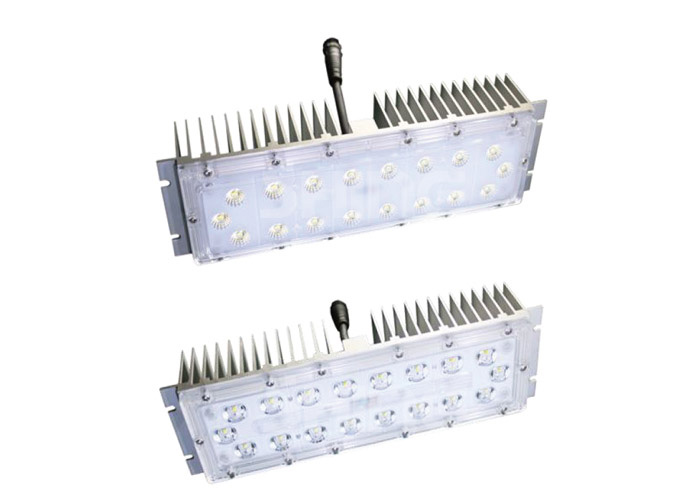

The LED module is developed by the SHINE OPTO R&D engineers team, according to the requirements and development of outdoor lighting market. It has many different optical designs with SHINE OPTO's proprietary technology, optimized the structure of heat radiation, can widely lower down the Tj, with very high luminous output. It also adopts standard electric connector, which can match customers' different requirements on housing designs.,such as street lights,tunnel lights,spot/flood lights,high bay lights and etc.
Material
●6063 aluminum alloy material by special processing, conductivity factor reached245W/(M.K)
● Aluminium PCB board's thermal conductivity 2
● Rubber cable
● 304 Stainless steel screw
● High efficiency flux lenses
● Cree or Philips led,warranty&life span>70000
Main Features
●6063 aluminum alloy material by special processing,conductivity factor reached
245W/(M.K),the Tj is less than 55℃ after heat balance.
●The lens use calculus patented technology and Shine Opto special optical material, so that the optical efficiency of the lens can reach more than 99%.
●With the unique patent technology, it can avoid causing the difference of the optical effects
from the Lens installation or the influence of the outdoor environment.
● Various of beam angle design, suitable for different occasions lighting.
● IP68 water proof,can working under water over 3m.
● Adopts standard electric connector,can match different requirement on housing designs.
● The complete optical designs,can reach the lighting demand of the various optical applications.
Technical Parameters
| Item | Power/W | LED | QTY | CCT | Flux of module LM/W | Voltage/V | Current/MA | IP Rating | Size/MM | NW/Kg |
| MS02A | 20 | PhilipsLumileds | 18 | 3000K/4000K 5000K/5700K | 130 | 57.1 | 350 | IP68 | 254*70*50 | 0.68 |
| 30 | 36 | 135 | 56.6 | 530 | IP68 | |||||
| 40 | 36 | 130 | 56.2 | 700 | IP68 | |||||
| 50 | 54 | 135 | 56.2 | 890 | IP68 | |||||
| 60 | 54 | 130 | 57.4 | 1045 | IP68 | |||||
| MS02B | 20 | Cree chips | 18 | 150 | 25.2 | 790 | IP68 | 254*70*50 | 0.68 | |
| 30 | 18 | 145 | 25.7 | 1160 | IP68 | |||||
| 40 | 18 | 140 | 28.6 | 1400 | IP68 | |||||
| 50 | 18 | 130 | 28.9 | 1730 | IP68 | |||||
| 60 | 18 | 120 | 27.3 | 2200 | IP68 |
| No. | Name | QTY |
| 1 | Lenses | 1 |
| 2 | Silicone gasket | 1 |
| 3 | Aluminium PCB with led | 1 |
| 4 | Heatsink | 1 |
| 5 | Screws | 22 |
| 6 | Waterproof screw | 1 |
| 7 | DC Cable | 1 |
Note
1,The parameters for LED modules are all testing under the condition of RH 85%.
2,The tolerance of luminous flux, power and current value<±5%.
3,All the materials of module meet ROHS standard.
4,The design and parameter of this module meet UL, DLC, TUV, ENEC, VDE, CB, ERP and other demonstration requirements.
5,The design of this module used a number of SHINE patented technology, please do not fake.
6,Do not close to look at working leds directly.
7,The module warranty terms are based on the parameter working condition listed in this specifications
