SH0101 - 50W

SH0101 - 50W

  • Description
  • Technical Parameters
  • Distribution Curves
  • Installation

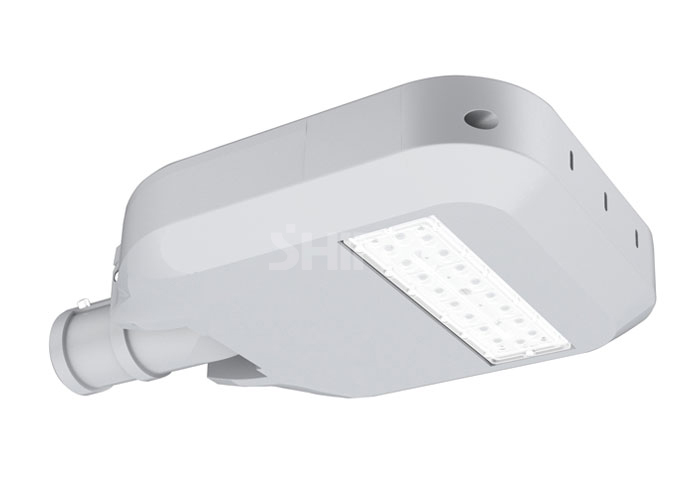

SH01 series LED MODULAR street light are ultimate replacement street light fixtures.lt is suitable for high temperature rangeshigh dust level and humidity. SH01 series LED MODULAR street light has

been developed to ensure maximum energy effciency in combination with modern technologies in lighting regulation.



Main Features

• High intensity die-cast aluminum body.

• 0-1200angle adjustable and applicable different mounting arm.

• Replaceable and upgradeable modular designeasy assemblyeasy installation and easy maintenance.

• High luminous flux 130-150Im/W.

• Photocell,Surge protector, Wireless single lamp controller optional.

• The complete optical designscan reach the lighting demand of the various optical applications.

SH0101-CM

SHOl series street lights are designed by Shine engineer R&D teams based on the outdoor application's demand of Led Street light adopting many Shine technical patents and special materials and after using of harsh env ronmental testing thus coming out such a perfect street light with simple appearance easy to install no tool maintenance and long life span.

SH0101-CM

SH0101-CM

LED Street Light

ItemPower/WModele QTYNW/KgIP RatingSize/MMCTN Size/MM
SH010120-6015.6IP68500*320*85570*390*160
SH010280-12027.0IP68575*320*85645*390*160
SH0103150-18038.3IP68650*320*85645*390*160
SH0104200-24049.4IP68725*320*85645*390*160
SH0105250-300510.6IP68800*320*85645*390*160
SH0106300-350611.8IP68875*320*85645*390*160


SH0101-CM

SH0101-CM

SH0101-CM
